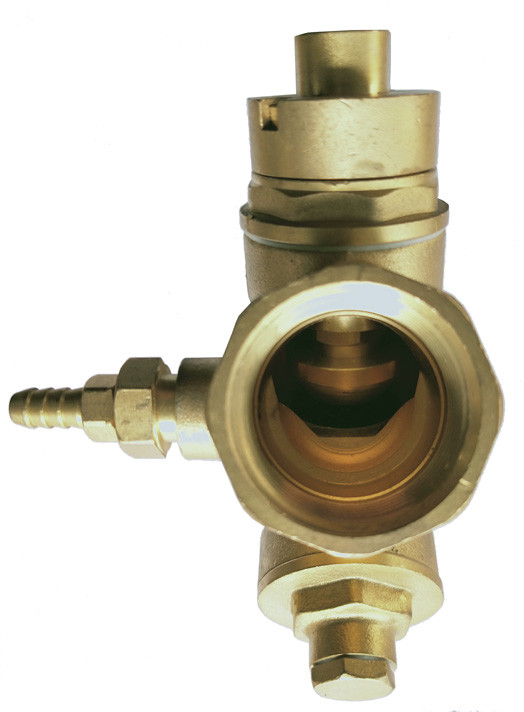

DN25 DN32 Magnetic Lockable Valve With Stemhead Round Patterned And Bottom

Brand Name : YORO

Model Number : 1616

Certification : ISO9001, ISO14001, ISO45001Etc.

Place of Origin : Zhejiang, China

MOQ : 500pcs per batch, more quantity might be required for tailor-made sizes

Price : EX WORKS or FOB Ningbo in USD

Payment Terms : T/T before shipment

Supply Ability : 100000 pcs per month

Delivery Time : 25-30 working days

Packaging Details : with a plastic bag inside,and a carton outside

Item Name : Magnetic Lockable Valve

Nominal Size : DN15 DN20 DN25 DN32

Pipe Connections : F1/2" X F1/2', F3/4" X F3/4", F1" X F1", F1.1/4" X F1.1/4" Threaded To BSPP Type

Meter Outlet : M10x1 Female Threaded, Included Cap And PTFE Seal

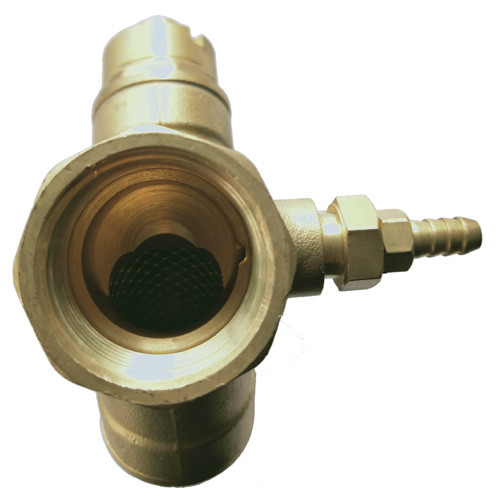

Strainer : 10 Mesh Stainless Steel

Detection Tube Size : I.D. 7mm

Pressure Rate : 16 Bar Max. Hydraulic

Main Material : Hot Forged Brass 57-3 Body And Bonnet

Flow Direction : One Way As Marked On Body

Operation Mode : Manually Adjustable by Multi-turn

Water Way Seal : Metallic Hard Seal
