8901 Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit

Name: 8901 Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit
Brand: YORO
Price: 1 USD

China 8901 Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit wholesale

Brand Name : YORO

Model Number : 8901

Certification : ISO9001, ISO14001, ISO45001Etc.

Place of Origin : Zhejiang, China

MOQ : 200 units

Price : To be Negotiated

Payment Terms : T/T

Supply Ability : 10000 pcs per month

Delivery Time : 25-30 working days

Packaging Details : Inner Box

Name : Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit

Power Source : 230VAC 50-60Hz

Main Connections : Flexible Female Nut G1"

Tap Water Outlet : Male Threaded G1/2"

External Supply Valve : Motorized Quarter-Turn, 2NM/2W

Working Pressure : 1.0 MPa Max.

Temp. Controller : LCD model

Check Valve : Adjustable 0.6 MPa Max.

Water Pump : 3 Bands Optional, 93W Max.

Temp. Control Range : 40℃～60℃

Installation Space : 480×380×140 mm

Contact Now

8901 Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit

Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit

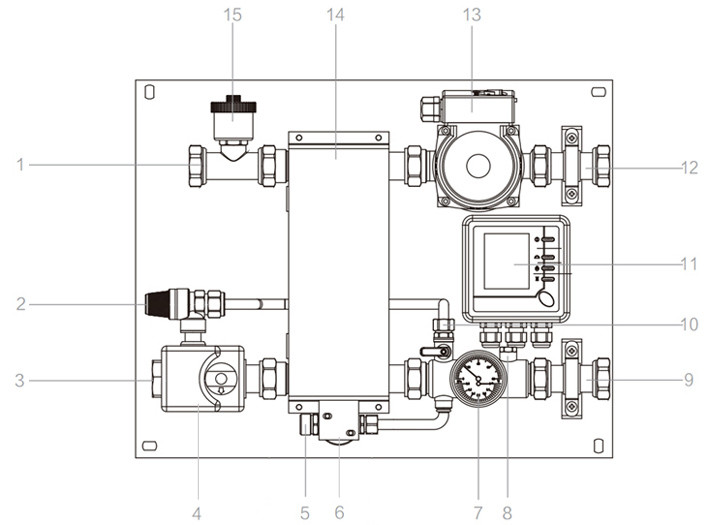

Illustration:

8901 Environment Friendly Water Mixing Center for Residential Heating Pipe System with Isolated Heat Transmitting Unit

1	External Return Outlet	2	Adjustable Check Valve
3	External Supply Outlet	4	Motorized Supply Valve
5	Tap Water Outlet	6	Solenoid Valve
7	Thermo/Pressure Gauge	8	Thermo Detecting Head
9	Internal Supply Outlet	10	Test Valve
11	LCD Temp. Controller	12	Internal Return Outlet
13	Water Pump	14	Isolated Heating Transmitting Unit
15	Automatic Air Vent
