1612 FxF Magnetic Lockable Brass Ball Valve size DN20 DN25 DN32 DN40 DN50 with Round Patterned Stemhead and Meter Outlet

Name: 1612 FxF Magnetic Lockable Brass Ball Valve size DN20 DN25 DN32 DN40 DN50 with Round Patterned Stemhead and Meter Outlet
Brand: YORO
Price: 1 USD

China 1612 FxF Magnetic Lockable Brass Ball Valve size DN20 DN25 DN32 DN40 DN50 with Round Patterned Stemhead and Meter Outlet wholesale

Brand Name : YORO

Model Number : 1612

Certification : ISO9001, ISO14001, ISO45001Etc.

Place of Origin : Zhejiang, China

MOQ : 1000pcs (DN20-DN25), 500pcs (DN32-40), 300pcs (DN50)

Price : Direct Wholesale prices

Payment Terms : T/T as mutually agreed in Proforma Invoice

Supply Ability : 100000 pcs per month

Delivery Time : 25-30 working days

Packaging Details : Each valve with a poly bag, and several ones in a master carton

Item Name : Magnetic Lockable Brass Ball Valve With Round Patterned Stemhead And Meter Outlet

Working pressure : 16 Bar Hydaulic

Nominal Sizes : DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2")

Pipe Connections : Two Ends Equal G Type Internal Screws

Outlet : Bottom one with M10x1 Internal Screws

Main Material : Copper Zinc Alloy 57-3

Color : Natural Brass Sand-Shot Without Plating

Workable Media : Water, or non-corrosive & non-combustible liquids

Temperature of Media : -10℃ To 100℃

Test : 100% Internal & External Leaking Tested At 6-8 Bar Air Pressure

Contact Now

1612 FxF Magnetic Lockable Brass Ball Valve size DN20 DN25 DN32 DN40 DN50 with Round Patterned Stemhead and Meter Outlet

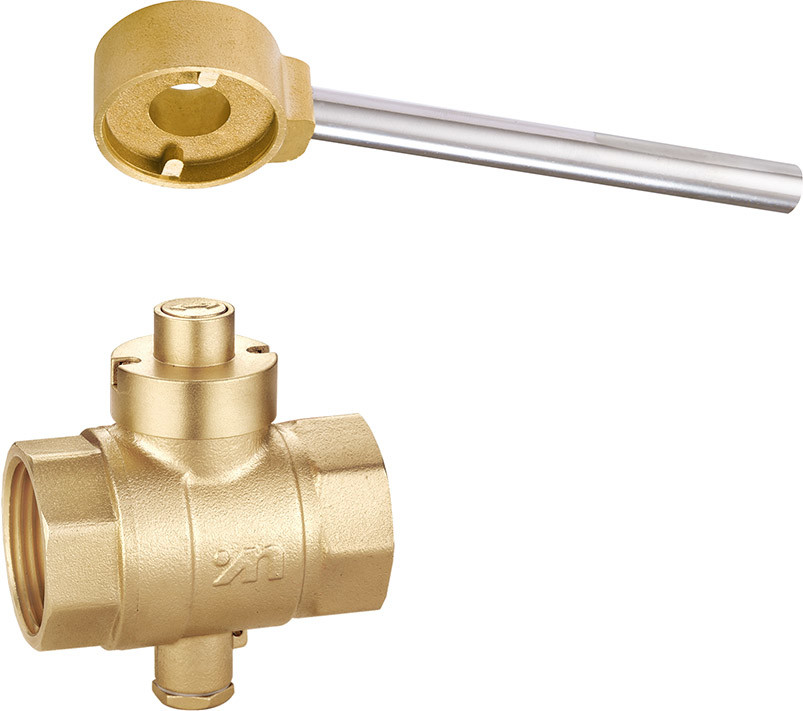

Magnetic Lockable Brass Ball Valve with Round Patterned Stemhead and Bottom Meter Outlet

Pipe Connection

1/2"

3/4"

1 1/4''

1 1/2''

2''
